More GTX1 Major Surgery

Here's an update on the hardtop;

There have been two things that have been pretty difficult with this project;
1) figuring out a sealing system to design and fab.
2) figuring out the best way to locate and latch the roof.

The first post covered some of the early work on the sealing.
This post will cover the locating and latching problem.

I have a general rule I try to follow on these things. Focus your attention on your unique problems, not the ones someone else has already solved. Hinges, latches, etc. all fall in that category. Some other much larger company has probably invested a ton of money in validating and tooling a solution you can use. In this case, I had to find a latching system that lent itself to the unique constraints of the GTX1.

I investigated quite a few different vehicles, bought latches to review, etc. and then had a bit of a revelation. The GTX1 targa is pretty much just a GenIII Corvette T-top turned sideways. I bought a set of latches and guide pins and some convertible guide pins, too. This affords me a whole system of parts that have been validated for a similar application and are readily off the shelf.

The other big task was to come up with a system of integrating these parts into the GT and allowing for any potential build variation of the GTX1s.

The really critical part is the header latch receiver. These have to be made unique to the GTX1. Lucky enough, the header casting has a few locator holes that were part of the original fixturing. I have repurposed these master locators as riv-nut locations that my latch receivers will mount to. It gives us a datum point that is the same on all subsequent GTX1s.
Here's a top view of the latch receiver mock ups.
Notice it integrates the Corvette receiver bushing.

Here's a view from inside the car.
These steel mock-ups will be turning into casting paterns to have the production ones produced in cast aluminum. I spent the better part of a week fabricating about three sets of these things before I was happy with this solution.....


Once the receivers are in place, the associated guide pin and latch must be located on the roof side. Here we see the mock up of the guide pin and latch locations on the roof pattern.


For the other side of the roof, I am using the Corvette T-top guide pins and receivers. This was a really cool 'happy accident'. The Corvette part looks like it was designed specifically for the GTX1!

I had to made brackets that allowed for the load path to go into the structural bulk head, rather than take the easy route and have it mount to the composite exterior panel. The bulkheads of the GTX1s were all CNC aluminum. This gives a repeatable datum at the back of the car, which should work as well as the header casting, to provide some repeatiability with fixturing. These new brackets allow for adjustment in 3 planes to provide for any variation of the exterior panel relative to the frame.

Here you can see all of the components located on the roof pattern for mock-up. We use a lot of MDF and body filler at this stage. It allows for a stable surface that we can mount the hardware to. By mocking things up like this, we can validate the installation and function of the guide pins and latches.

Next step is to mock up the seal planes. After this we can make the rear window and then tool up the roof!

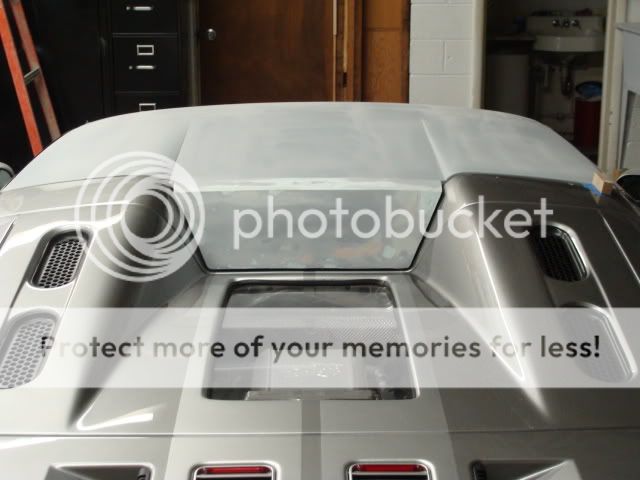

Here is the roof pattern on the car.


More to come!
