One of the takeaways I had from visiting the production facility was that the GT is a lot more of a special machine than has been detailed. It's a beautiful car on the outside, but without seeing underneath the skin, you miss so much of what makes it one of a kind.

The car buying public is spoiled because there are so many awesome cars on the market from so many manufacturers, but at times, you get out of one and into another and it all blurs into the same experience. Virtually all the "fast" cars on the market are well beyond the capability of the people who will buy them, and they've become so dialed in for mass market consumers, that unless you are driving 10/10ths on a racetrack, the cars lose their sense of occasion.

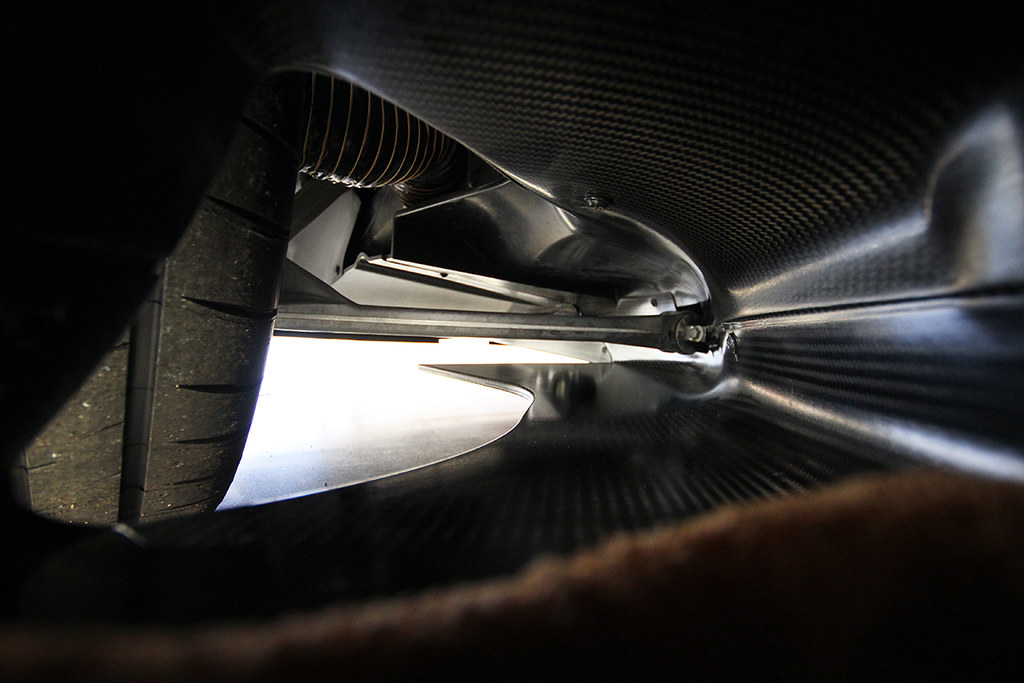

Here's just one example of what makes the GT special, and one that shows how much race car DNA is in the car. Everyone has seen the air management behind the front wheel, aka the first thing to clear bra. Let's take a look inside:

You can side why I taped this little area off when I got to take this car for a drive, even if it was only 2 miles there and back. The pilot cups are extremely sticky and it will chuck rocks up there quickly, ejecting them right down the side of your carbon lowers. This area needs to be clear bra'd immediately.

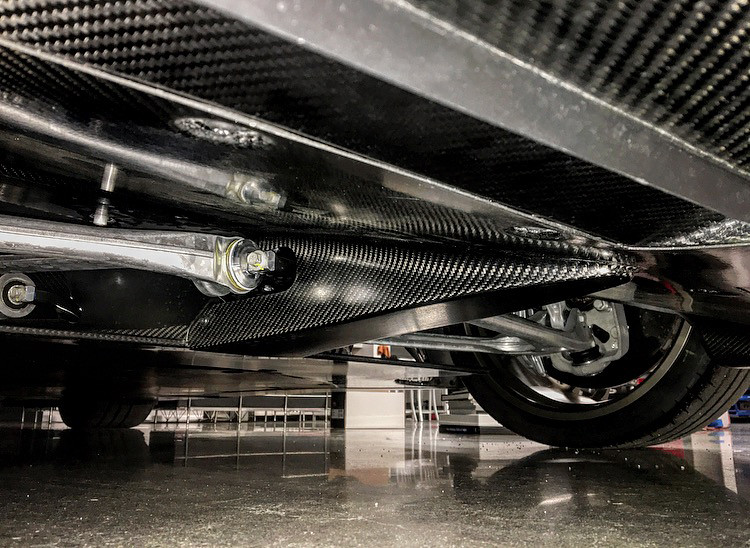

Look inside and you can see the control arms. They are incredibly long. I wanted to try and wipe down the carbon but I couldn't even reach the attachment point lying on my back, and not just because I have tyrannosaurus arms. It's damn near at the center of the car. It's like something from an open wheel car. Oh, and carbon. Everything is carbon. The entire underbody of the car.

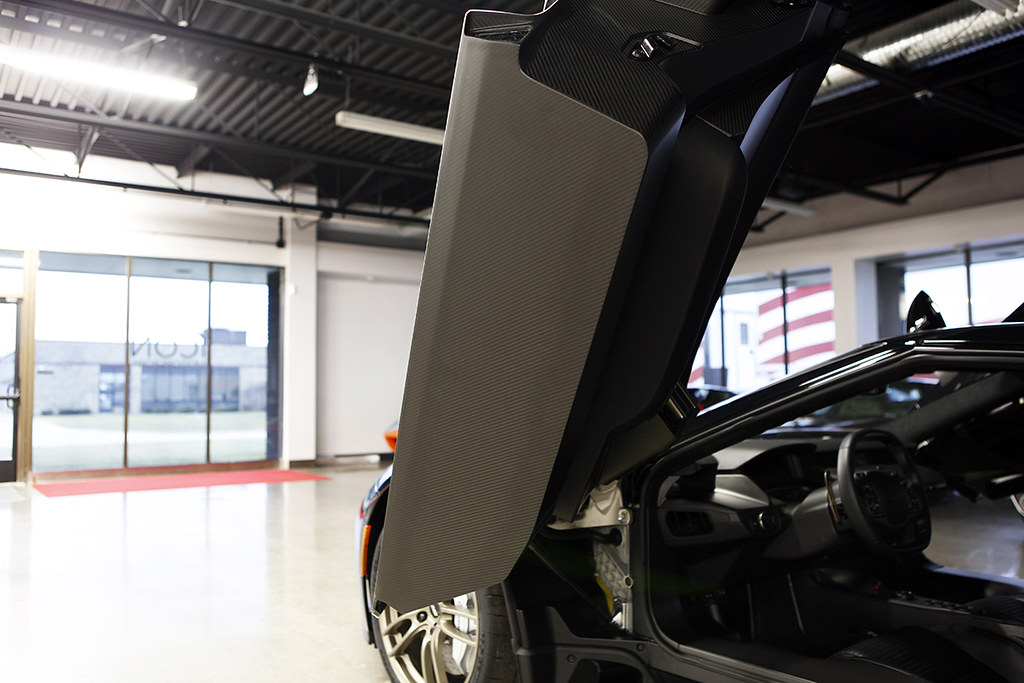

Just in case you haven't seen it, here's a door bottom as an example.

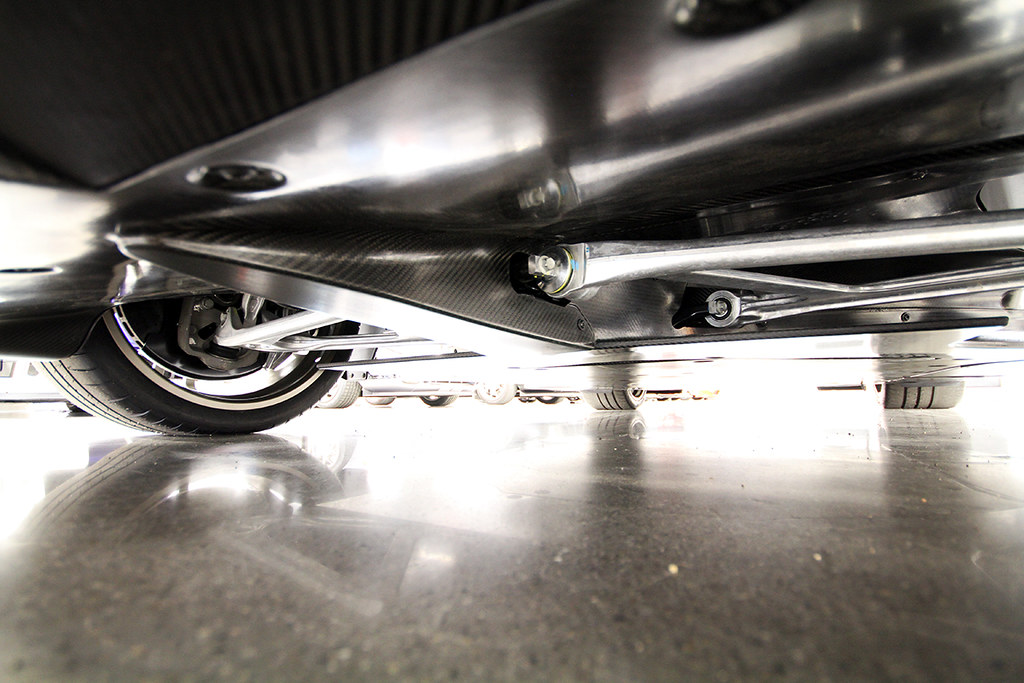

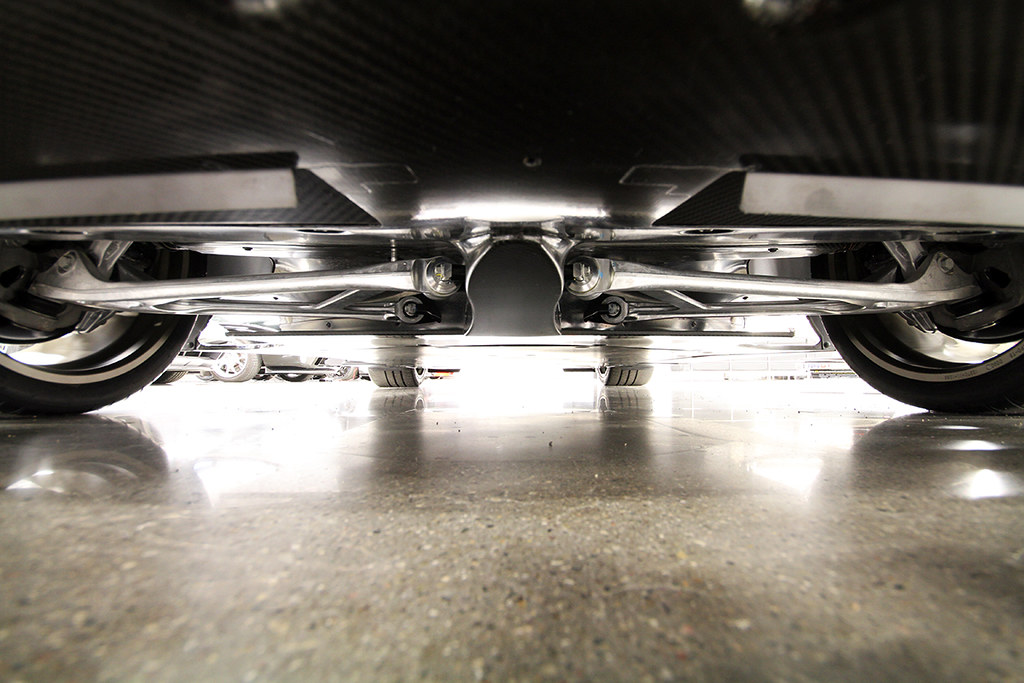

So I wasn't kidding about them being mounted nearly in the center of the car. This is the zero keel chassis construction. It aids in airflow management and is an obvious nod to the concurrent road car/race car development cycle. The active aero slats in the front splitter open and close to bleed off some of the front downforce.



You can see why MM is chosen as a CF partner on so many 7 figure hypercars; their CF work is amazing. Total race DNA.

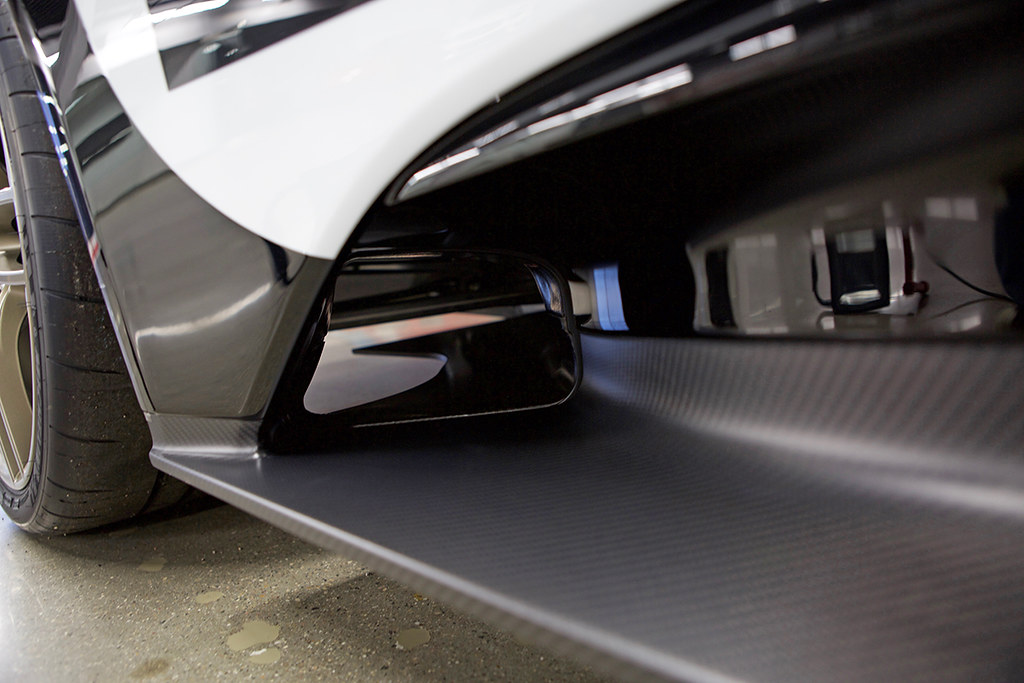

Phone pic for IG shows pretty well, even if it's a little dirty:



So this one area of the car where you can see it's not quite like the rest of the market. There are more to go over later.

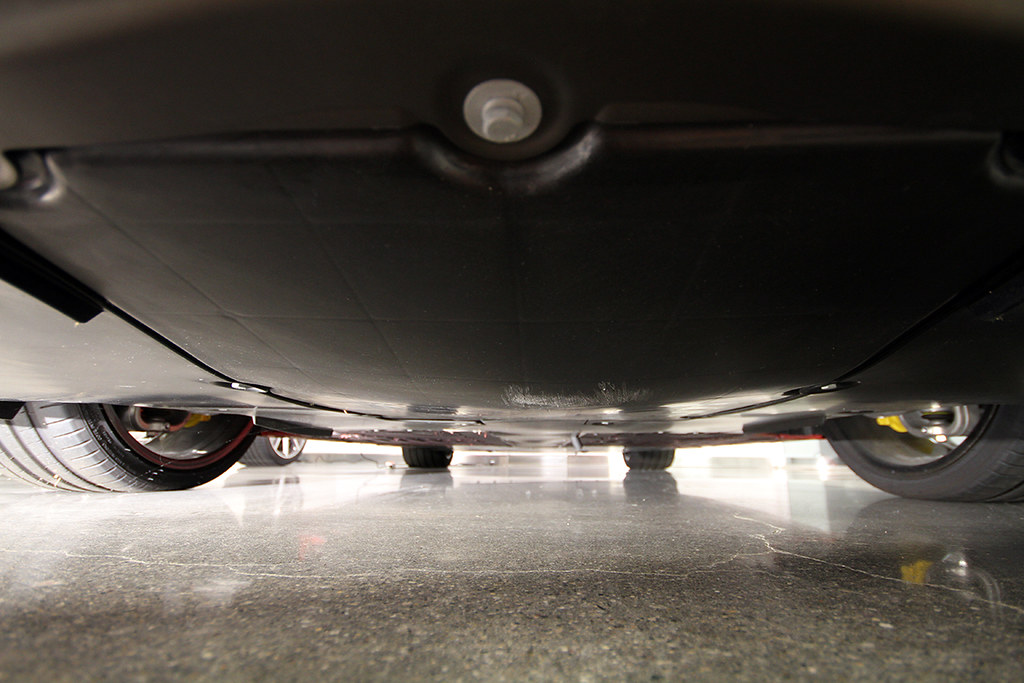

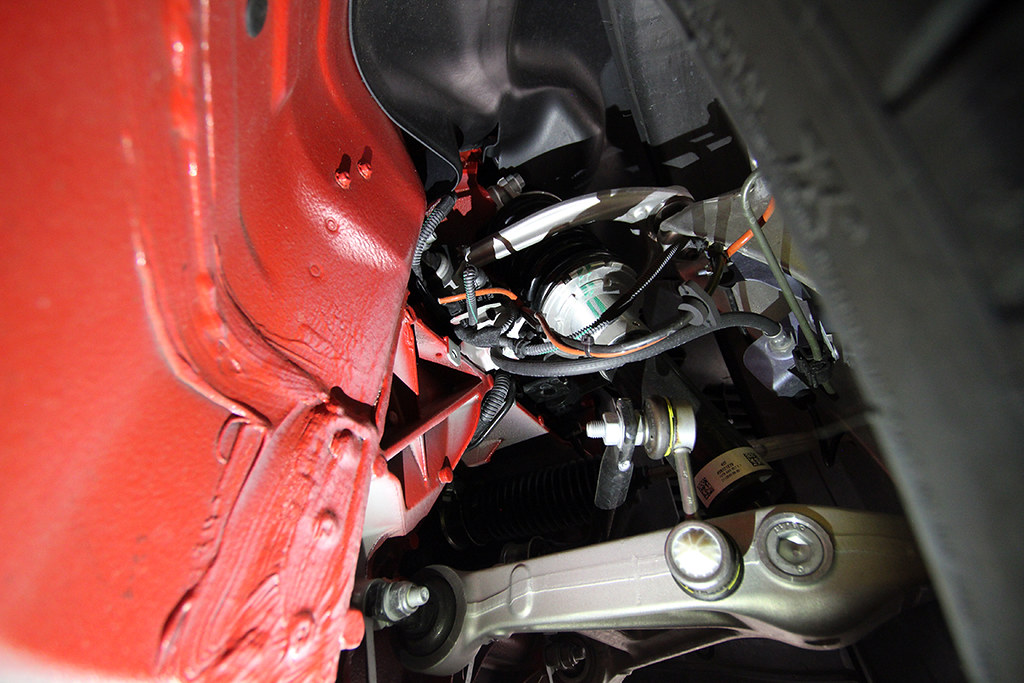

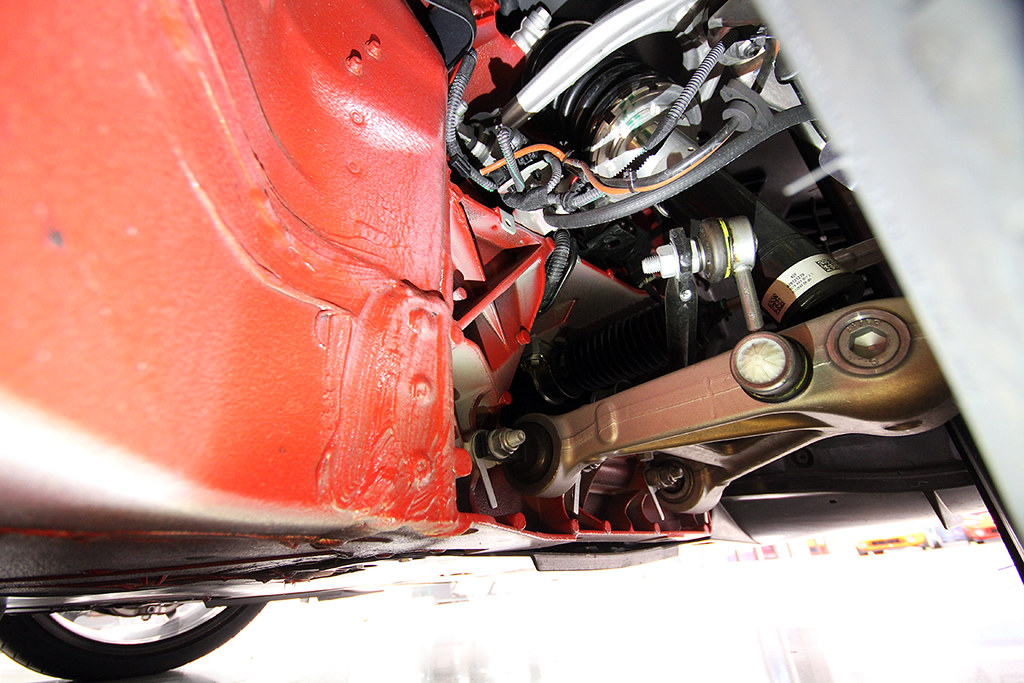

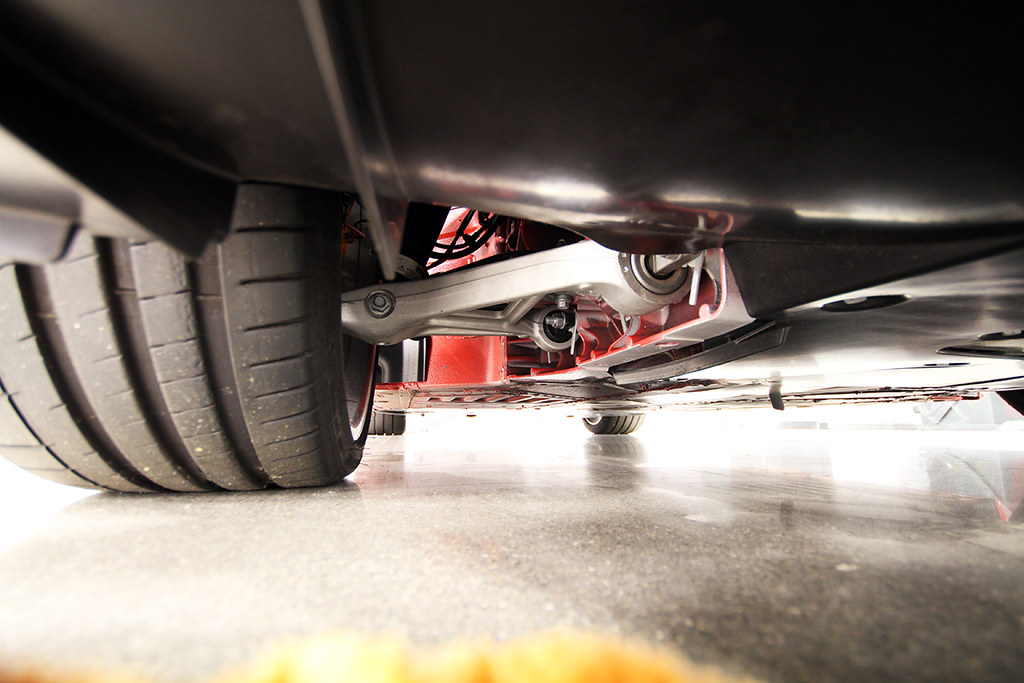

I am not posting the below pics trying to rag this car; it's an awesome car. But we have a 458 Spider here with about 1200 miles on it and I thought it would be a useful comparison. It was about $330k new.

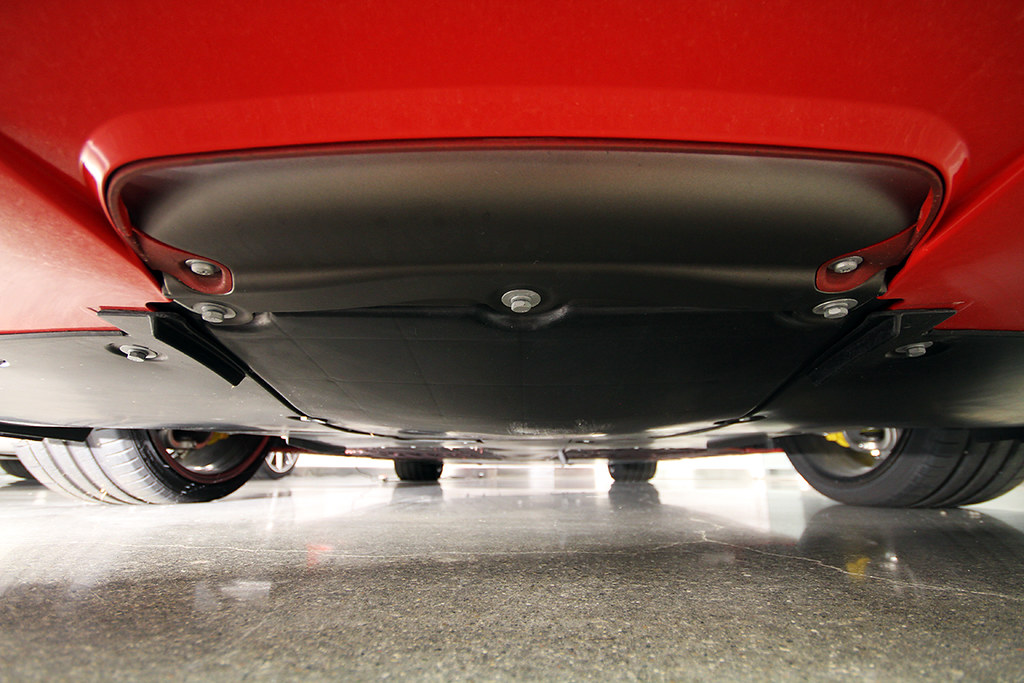

Please ignore the scuff in the plastic underbody tray.











You can see the difference.


timcantwell

Le Mans 2010 Sponsor * Moderator
Mark IV Lifetime
Le Mans 2010 Supporter
Jan 22, 2006
2,634
N.E. OH & Naples, FL
Wow Dave, what a great thing to have you do this deep-dive into the details. Having worked on dozens of F-cars myself, I have often been disappointed in the under-body and engine bay designs. The new GT truly takes it to a new level.


Sinovac

GT Owner
Mark II Lifetime
Jul 18, 2006
5,832
Largo, Florida
Just incredible.


PL510*Jeff

Well-known member
Mark IV Lifetime
Le Mans 2010 Supporter
Nov 3, 2005
4,881
Renton, Washington
Thank you Dave. Very Special is an understatement.


AJB

GT
Mark II Lifetime
Le Mans 2010 Supporter
Jun 28, 2006
2,944
Bloomfield Hills, Michigan
Very cool...

Dave - you need to get a 4-post-hoist , take off all the belly pans and do a complete front-to-back instructional photo-set like what you started here.
Or bring the car to my house and put it on my 4 poster !! :):)

andy (ajb)


john gourley

GT Owner
Mark IV Lifetime
Apr 27, 2006
418
The more you see the more mind blowing the car is. Thanks for the great photos Dave


shesgotlegs

GT Owner
Mark II Lifetime
Jul 20, 2006
1,181
Tyrannosaurus arms :lol


CJ428

Farm GT
Mark II Lifetime
Le Mans 2010 Supporter
May 21, 2008
1,473
NJ
looks like a mini F1 keel


GKW05GT

GT Owner
Mark II Lifetime
May 28, 2011
2,755
Fayetteville, Ga.
The best details yet. Truly amazing


Sinovac

GT Owner
Mark II Lifetime
Jul 18, 2006
5,832
Largo, Florida
looks like a mini F1 keel

That is exactly what it is. What makes it so amazing is that all these features are completely unnecessary on a street car. Ford could have dumbed the car down for the street, but it's like they said screw it, just put a VIN on the race car and sell it.

The car needs $3000 of clear film underneath it.


STORMCAT

GT
Mark IV Lifetime
Le Mans 2010 Supporter
May 25, 2006
7,551
Ft. Lauderdale
:pop:pop:pop geezz , sure looks pretty under there !! Looks like I'll be waxing and clear braing on the bottom side too !! :biggrin So be honest Dave, have you left the garage since this thing arrived !! :lol

Last edited:

FENZO

GT Owner
Mark II Lifetime
Jul 7, 2008
1,518
Lafayette, CO
That's like looking up Yasmine Bleeth's skirt.


GTJack

GT Owner
Mark IV Lifetime
Le Mans 2010 Supporter
Oct 1, 2006
1,728
Saddlebrooke, MO
Many thanks for the pics and description. The design and attention to detail is way, way out there! By the time mine gets built, or delivered, the clear bra will be an option at factory or dealer. Seeing this motivates me to have it wrapped before I get it as I will want to drive it right away without fear of dinging it.

Last edited:

nota4re

GT Owner
Mark IV Lifetime
Le Mans 2010 Supporter
Feb 15, 2006
4,196
I can still remember how utterly SHOCKED I was when we first put a Gen 1 Viper up on the lift. OMG! VERY nice looking on top.... not very pretty AT ALL underneath.

Last edited:

mccarter1369

Ford Enthusiast
Mark II Lifetime
Sep 18, 2006
158
Denver, CO
Thank you for posting comparision photos. To say the difference is "dramatic" is understated. The real power in your post is that the undercarriage of the 458 is relatively "tidy" in appearance and looks great until you measure the two against one another. The engineering, materials and design for the GT appears more modern by "decades".


Brombear

GT Owner
Mark II Lifetime
May 16, 2013
1,396
Frankfurt Area, Germany
Engineering porn.


Sinovac

GT Owner
Mark II Lifetime
Jul 18, 2006
5,832
Largo, Florida
That's like looking up Yasmine Bleeth's skirt.

Man, you're showing your age. Did Betty Davis slip your mind? :lol


Sinovac

GT Owner
Mark II Lifetime
Jul 18, 2006
5,832
Largo, Florida
Thank you for posting comparision photos. To say the difference is "dramatic" is understated. The real power in your post is that the undercarriage of the 458 is relatively "tidy" in appearance and looks great until you measure the two against one another. The engineering, materials and design for the GT appears more modern by "decades".

I really can't get over fact that Ferrari doesn't use a carbon tub, which McLaren uses on even its cheapest car. With the exception of the limited specials, Ferraris are not much to look at naked.


dbk

The Favor Factory™
Staff member
Le Mans 2010 Supporter
Jul 30, 2005
15,187
Metro Detroit
The cool thing about the GT is that as you peel the layers you just discover more jewelry. I've always felt the 05/06 blew away it's contemporaries when you saw it stripped down. 17+ is the same way.


stuntman

GT Owner
Jan 15, 2015
216
I really can't get over fact that Ferrari doesn't use a carbon tub, which McLaren uses on even its cheapest car. With the exception of the limited specials, Ferraris are not much to look at naked.
It's a huge investment in overhead and manufacturing. It's not as easy as just choosing to use carbon instead of aluminum.
